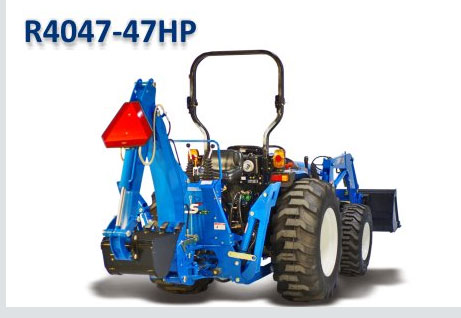

R 4047

Just when you thought the R-Series couldn't provide any more value in a heavy-duty compact tractor, the R4047 delivers even more. With 15% more raw engine horsepower to climb steeper grades and pull heavier loads and 17% more PTO horsepower to take on harder soil conditions, cut taller grass, and clean up denser brush than the R4041, this 4WD workhorse can make quick work of even tough jobs.



And as you would expect, this powerhouse 4WD compact tractor also provides you with fully synchronized 16 forward and 16 reverse gears so you can select the perfect operating speed and change gears without stopping. Easily change direction with the convenient shuttle shift. Select between independent or manual PTO with the turn of a switch and easily attach hydraulically operated implements like rakes, backhoes, wood splitters, grapples with the two sets of rear remote valves that come standard. It doesn't stop there; the extendable lower links make changing 3-point implements very easy. Plus our standard loader is quick attach, skid steer compatible and comes with a grill guard. All in all, the R4047 offers you more operating speeds, more front end loader lift capacity and more standard features than the competition. About the only thing you get more of with the competition is their price.y on your wallet.


R-stylish-design

Modern Stylish Design

This small chassis compact 4WD is ergonomically designed and stylish with its distinctive blue color.

7_16_ta

Mitsubishi Tier 4 Engine

The Mitsubishi Tier 4 fuel efficient engine delivers reliable performance. Rubber engine mounts reduce operator platform vibration. Easy Open One-Piece Hood - provides accessibility for easy maintenance.

Large Fuel Tank

The large 9.5 gallon capacity fuel tank provides long operation times.

Synchro Shuttle Transmission

Makes changing direction easier than competitive non-shuttle gear models. 12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.

PTO On/Off Switch

Turn the independent rear or mid PTO on or off with the simple and easy turn of a switch.

Simple Selections

Select your gear range or 2WD/4WD with the simple move of the levers.

3-Point Hitch

Category 1 with a hitch lift capacity of 1809 lbs. allows usage of a wide variety of implements. Drawbar Standard - increases the usefulness of the tractor without the additional optional cost. Extendable lower links-makes connecting implements easier.

Ergonomically Designed 3-point Hitch Controls

Easily accessible for maximum comfort and convenience.

Adjustable Seat with Seat Belt

Keeps you in a comfortable and safe position for maximum control.

Standard Foldable ROPS

Allows storage in low clearance buildings or sheds.

Flat Platform

Maximizes space and makes getting on and off tractor easier.

2 Sets of Remotes Standard

Adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.

Rear Work Light

Never be in the dark with this hands-free functional feature that

Greater Steering Angle

Improves handling with tighter turning radius. Hydrostatic Power Steering - makes turning easier, improves control and reduces fatigue. Comfortable, easy to reach fender mounted front end loader joystick.

Your Choice of Tires

You can choose industrial or turf tires at no additional cost; subject to dealer inventory.

Front End Loader

Optional Quick Attach, Skid Steer Compatible Front End Loader - remove or attach in seconds. With 2250 for R3039 models lbs. of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.

Backhoe

Optional Quick Attach Backhoe - remove or attach in seconds. With 89" digging depth, 2,679 lbs. of digging force and 180degree swing arc, it outperforms other in its class.

2000 RPM Mid PTO

Optional 2000 RPM Mid PTO


Tractor Specs

ENGINE
Manufacturer Mitsubishi
Model S4QL-D
Gross - Horsepower 47
Rated Engine Speed 2600
Number of Cylinders 4
Displacement-cu.in. 152.9
POWER TRAIN
Transmission Type Syncro Shuttle
Number Of Speeds 16 F / 16R
Brakes Wet Multi Disc
HYDRAULIC SYSTEM
Pump Type Dual Gear Pump
Max Total Flow gpm 12.3
Category, 3 Point Hitch 1
Hitch Lift Capacity, lb 2755
PTO
Type Independent
Control Electric/Hydro
Mid (rpm)-Option 2000
Rear (rpm) 540
Shaft Diameter in. (mm) 1 3/8 (35)
CAPACITIES
Fuel Tank, U.S. gal 9.5
DIMENSIONS
Overall Length, in. with 3P 132.2
Overall Width, in. 55.9
Wheelbase, in. 69.2
Height to Top of ROPS, in. 95.1
Min. Ground Clearance, in -
STANDARD TIRES
Turf Front 28x8.5 - 15
Turf Rear 41x14 - 20
Ag Front 9.5 - 16
Ag Rear 13.6 - 24
Industrial Front 12x16.5
Industrial Rear 17.5L-24
WEIGHT
Total Weight, lb 3813
