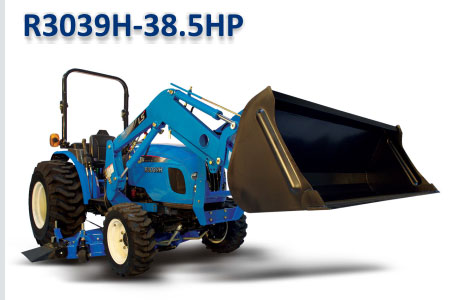

R 3039H

If you need an easy to use medium duty 4WD compact tractor that delivers superior performance, functionality and comfort, take a look at the R3039H. With its 3 range hydrostatic transmission (HST), you can precisely control your operating speed and change direction simply by using the forward or reverse pedals without clutching or moving a shuttle shifter or gear lever, enabling you to keep one hand on the steering wheel and the other on your loader joystick or 3-point hitch control lever. Nothing is as easy and comfortable, especially when having to go back and forth a lot during an operation such as front end loader work or using a box blade.

The R3039H even has cruise control so you can set a constant speed when desired. With more front end loader lift capacity than the competition, you can get the job done faster by lifting more in each load. Hydraulically operated implements like rakes, backhoes, wood splitters, grapples and more can easily be connected to the two sets of rear remote valves. And attaching 3-point hitch implements is made easier with its extendable lower links. Drop by an LS Tractor dealer to see the stylish design and unmatched value of the R3039H.


R-stylish-design

Modern Stylish Design

This small chassis compact 4WD is ergonomically designed and stylish with its distinctive blue color.

7_16_ta

Mitsubishi Tier 4 Engine

The Mitsubishi Tier 4 fuel efficient engine delivers reliable performance. Rubber engine mounts reduce operator platform vibration. Easy Open One-Piece Hood - provides accessibility for easy maintenance.

Large Fuel Tank

The large 9.5 gallon capacity fuel tank provides long operation times.

Hydrostatic Transmission

Maximizes ease of use with effortless, clutch-less and instant speed and directional changes with a simple push of the pedal.

PTO On/Off Switch

Turn the independent rear or mid PTO on or off with the simple and easy turn of a switch.

Simple Selections

Select your gear range or 2WD/4WD with the simple move of the levers.

3-Point Hitch

Category 1 with a hitch lift capacity of 1809 lbs. allows usage of a wide variety of implements. Drawbar Standard - increases the usefulness of the tractor without the additional optional cost. Extendable lower links-makes connecting implements easier.

Ergonomically Designed 3-point Hitch Controls

Easily accessible for maximum comfort and convenience.

Adjustable Seat with Seat Belt

Keeps you in a comfortable and safe position for maximum control.

Standard Foldable ROPS

Allows storage in low clearance buildings or sheds.

Flat Platform

Maximizes space and makes getting on and off tractor easier.

2 Sets of Remotes Standard

Adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.

Rear Work Light

Never be in the dark with this hands-free functional feature that

Greater Steering Angle

Improves handling with tighter turning radius. Hydrostatic Power Steering - makes turning easier, improves control and reduces fatigue. Comfortable, easy to reach fender mounted front end loader joystick.

Your Choice of Tires

You can choose industrial or turf tires at no additional cost; subject to dealer inventory.

Front End Loader

Optional Quick Attach, Skid Steer Compatible Front End Loader - remove or attach in seconds. With 2250 for R3039 models lbs. of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.

Backhoe

Optional Quick Attach Backhoe - remove or attach in seconds. With 89" digging depth, 2,679 lbs. of digging force and 180degree swing arc, it outperforms other in its class.

2000 RPM Mid PTO

Optional 2000 RPM Mid PTO


Tractor Specs

ENGINE
Manufacturer Mitsubishi
Model S4L2
Gross - Horsepower 4
Rated Engine Speed 2700
Number of Cylinders 4
Displacement-cu.in. 107.3
POWER TRAIN
Transmission Type Syncro Shuttle
Number Of Speeds 12F / 12R
Brakes Wet Multi Disc
HYDRAULIC SYSTEM
Pump Type Dual Gear Pump
Max Total Flow gpm 12.9
Category, 3 Point Hitch 1
Hitch Lift Capacity, lb 1808
PTO
Type Independent
Control Electric/Hydro
Mid (rpm)-Option 2000
Rear (rpm) 540
Shaft Diameter in. (mm) 1 3/8 (35)
CAPACITIES
Fuel Tank, U.S. gal 8.4
DIMENSIONS
Overall Length, in. with 3P 117.6
Overall Width, in. 54.3
Wheelbase, in. 65.4
Height to Top of ROPS, in. 92.6
Min. Ground Clearance, in -
STANDARD TIRES
Turf Front 25x8.5-14
Turf Rear 41x14 - 20
Ag Front 7 - 14
Ag Rear 11.2 - 24
Industrial Front 25x8.5 - 14
Industrial Rear 43x16-20
WEIGHT
Total Weight, lb 2780
