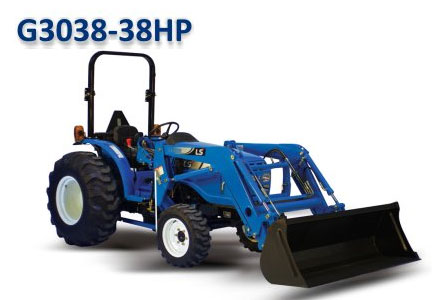

G 3038

Never compromise. Your need for a basic compact tractor should never mean that you have to compromise on the power you need to make quick work of tougher soil conditions, steep grades, pulling heavier loads, moving larger loads of dirt or soil, or cutting taller, thicker brush. The G3038 combines power and value. With 15% more engine horsepower and over 18% more PTO horsepower than the G3033, the G3038 helps you take on heavier load applications while reducing the need to operate at slower speeds.

Want more? With more front end loader lift capacity and more operating speeds than competitive models, the G3038 outperforms other tractors in its class. Better yet, it comes with independent PTO rather than transmission or live PTO like many competitors. This makes it easier to engage and disengage by eliminating the need to clutch or come to a complete stop. Get more, do more and save more with the G3038; the ultimate in a value compact tractor.

6_12_georgia

Modern Stylish Design

This small chassis compact 4WD is ergonomically designed and stylish with its distinctive blue color. Mechanical front wheel assist 4WD- greatly enhances traction.
7_16_ta

Mitsubishi Tier 4 Engine

The Mitsubishi Tier 4 fuel efficient engine delivers reliable performance. Rubber engine mounts reduce operator platform vibration. Easy Open One-Piece Hood - provides accessibility for easy maintenance.

Large Fuel Tank

The large 7.4 gallon capacity fuel tank provides long operation times.

PTO On/Off Switch

Turn the independent rear or mid PTO on or off with the simple and easy turn of a switch.

Synchro Shuttle Transmission

Makes changing direction easier than competitive non-shuttle gear models. 12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.

Simple Selections

Select your gear range or 2WD/4WD with the simple move of the levers.

Hydrostatic Power Steering

This makes turning easier, improves control and reduces fatigue.

3-Point Hitch

Category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements. Drawbar Standard - increases the usefulness of the tractor without the additional optional cost.

Ergonomically Designed 3-Point Hitch Controls

Easily accessible for maximum comfort and convenience.

Adjustable Seat with Seat Belt

Keeps you in a comfortable and safe position for maximum control.

More Leg Room with Side Mounted Gear Lever

This allows for storage in low clearance buildings or sheds.

Your Choice of Tires

You can choose industrial or turf tires at no additional cost; subject to dealer inventory.

Front End Loader

Optional Quick Attach, Skid Steer Compatible Front End Loader - Remove or attach in moments. With 1,600 lbs of lift capacity it outperforms others in its class. Grill guard comes standard with loader rather than an option like others in its class.

Backhoe Attachment

Optional Quick Attach Backhoe - remove or attach in seconds. With 76" digging depth 2,817 lbs. of digging force and 180degree swing arc, it outperforms other in its class.

Tractor Specs

ENGINE
Manufacturer Mitsubishi
Model L3BL
Gross - Horsepower 38
Rated Engine Speed 2600
Number of Cylinders 3
Displacement-cu.in. 122.2
POWER TRAIN
Transmission Type Syncro Shuttle
Number Of Speeds 12 F / 12 R
Brakes Wet Multi Disc
HYDRAULIC SYSTEM
Pump Type Dual Gear Pump
Max Total Flow gpm 11.9
Category, 3 Point Hitch 1
Hitch Lift Capacity, lb 1808
PTO
Type Independent
Control Electric/Hydro
Mid (rpm)-Option N/A
Rear (rpm) 540
Shaft Diameter in. (mm) 1 3/8 (35)
CAPACITIES
Fuel Tank, U.S. gal 7.4
DIMENSIONS
Overall Length, in. with 3P 117.6
Overall Width, in. 41
Wheelbase, in. 65.9
Height to Top of ROPS, in. 90.2
Min. Ground Clearance, in -
STANDARD TIRES
Turf Front 25x8.5-14
Turf Rear 41x14 - 20
Ag Front 7 - 14
Ag Rear 11.2 - 24
Industrial Front 25x8.5 - 14
Industrial Rear 43x16-20
WEIGHT
Total Weight, lb 2690
